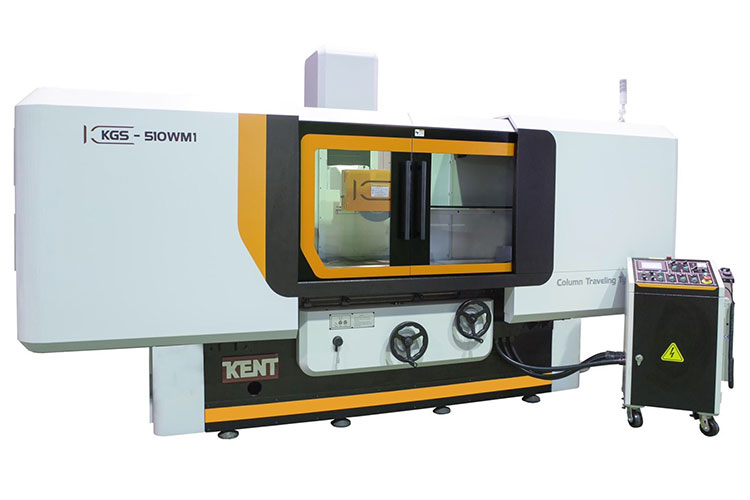

Model KGS-510WM Series
KGS Surface Grinder / 3 Axes Automatic

KGS-510WM1 (Downfeed Programmable)
KGS-510WM2 (Downfeed and Crossfeed Programmable)
KGS-510WMA1 (Downfeed Programmable + Auto Dresser)
KGS-510WMA2 (Downfeed and Crossfeed Programmable + Auto Dresser)

Back Other Models
KGS Surface Grinder / 3 Axes Automatic: KGS-510WM Series

Model KGS-510WM Series
Features & Capability

Longitudinal on V-flat scraped guideways
Column traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding

Model KGS-510WM Series
Main Specifications


Specification Unit KGS-510WM Series
Capacity Overall table working area
Longitudinal table travel
Crossfeed table travel
Distance spindle center to table 		INCH
INCH
INCH
INCH		 20 x 40
45
21.3
22.6
Grinding Wheel Wheel dimension (Dia. x W x Bore)
Spindle speed 		INCH
r.p.m		 14 x 1.5 or 2 x 5
1740
Vertical Movement Vertical on MPG / Handwheel 1 gra
Vertical on MPG / Handwheel 1 rev
Auto downfeed increment 		INCH
INCH
INCH		 0.00005
0.005
0.00005-0.01
Motor Spindle motor HP 10
Dimension & Weight Machine height
Floor space
Net weight
Gross weight 		INCH
INCH
LB
LB		 95
175 x 83
11000
13200

Model KGS-510WM
Options

Magnetic Separator & Paper Filter Coolant System (M2)
Digital Read Out System
DRO Installation & Display Arm & Tray, Mounting Bracket
Fine Pole Electromagnetic Chuck
Extra Wheel Flange

Table Splash Guard (Rear)
Full Enclosure Guarding
Spindle Motor Frequency Inverter for Variable RPM
Hydraulic Oil Chiller
