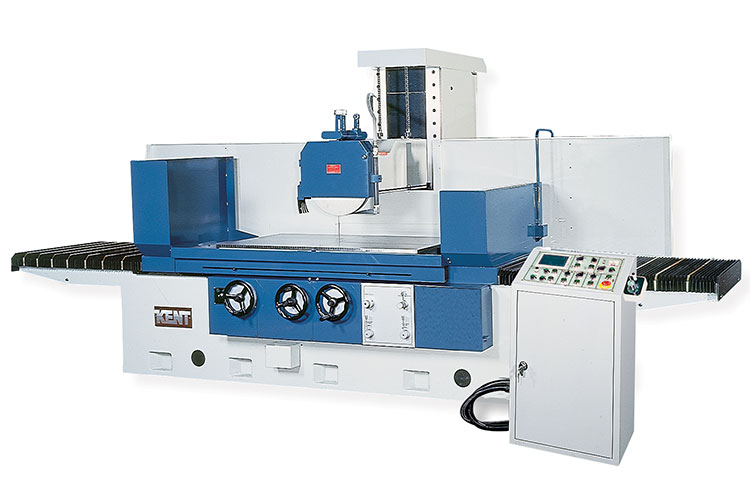

Model KGS-820WM Series
KGS Surface Grinder / 3 Axes Automatic


KGS-820WM1 (Downfeed Programmable)
KGS-820WM2 (Downfeed and Crossfeed Programmable)
KGS-820WMA1 (Downfeed Programmable + Auto Dresser)
KGS-820WMA2 (Downfeed and Crossfeed Programmable + Auto Dresser)

Back Other Models
KGS Surface Grinder / 3 Axes Automatic: KGS-820WM Series

Model KGS-820WM Series
Features & Capability


Longitudinal on V-flat scraped guideways
Column traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller for stable performance
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding

Model KGS-820WM Series
Main Specifications


Specification Unit KGS-820WM Series
Capacity Overall table working area
Longitudinal table travel
Crossfeed table travel
Distance spindle center to table
INCH
INCH
INCH
INCH
32 x 80
88.5
34.5
34.5
Grinding Wheel Wheel dimension (Dia. x W x Bore)
Spindle speed
INCH
r.p.m
20 x 2 x 5
1150
Vertical Movement Vertical on MPG / Handwheel 1 gra
Vertical on MPG / Handwheel 1 rev
Auto downfeed increment
INCH
INCH
INCH
0.00005
0.005
0.00005
Motor Spindle motor HP 15
Dimension & Weight Machine height
Floor space
Net weight
Gross weight
INCH
INCH
LB
LB
112
237 x 133
34100
38500

Model KGS-820AHD
Options


Magnetic Separator & Paper Filter Coolant System (M2)
Digital Read Out System
DRO Installation & Display Arm & Tray, Mounting Bracket
Fine Pole Electromagnetic Chuck
Extra Wheel Flange

Table Splash Guard (Rear)
Full Enclosure Guarding
Spindle Motor Frequency Inverter for Variable RPM
Hydraulic Oil Chiller
